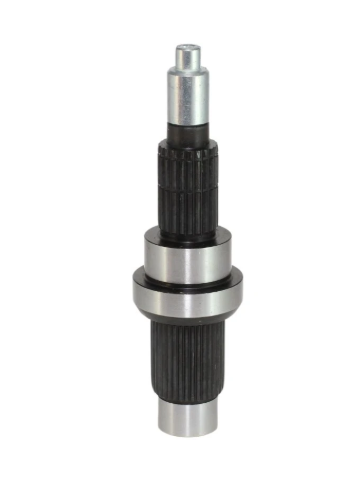

Output Shaft Assembly-132JM1

Name: Output Shaft Assembly-132JM1
Brand: Coffing®
SKU: 132JM1
Price: 336.88 USD
Availability: InStock

Output Shaft Assembly-132JM1

Click to view specifications

Product variants

Product Code: SKU:132JM1

Product Price:

$336.88 USD

Sale Sold out

Brand: Coffing®

Availability

Factory Order

Typically ships based on manufacturer lead time.

Check if this part fits your equipment Select your equipment to verify compatibility.

Brand

Series

Model

Part identification help What this part does, wear signs, and inspection guidance

Common signs of wear

Scoring, bending, shaft wear, damaged bearing/retaining surfaces, looseness or excessive play.

Possible symptoms

Possible signs include load-sheave wobble or side play, rough chain travel, abnormal noise, misalignment, or inconsistent chain engagement.

Inspection / ordering tip

Inspect the shaft for straightness, scoring and wear at bearing/sheave fits; check retaining features and confirm the sheave rotates without excessive play.

Guidance basis: Load-sheave shaft assembly listed as transmission callout 26A and includes items 26 and 27. Inspect the shaft assembly with the sheave, spacer and retaining components. Reference: Coffing JLC680-1, Fig. 22 and transmission parts list, pp. 28-29; https://www.coffinghoist.com/wp-content/uploads/sites/5/Coffing-JLC-Manual.pdf

Look for callout 26A
