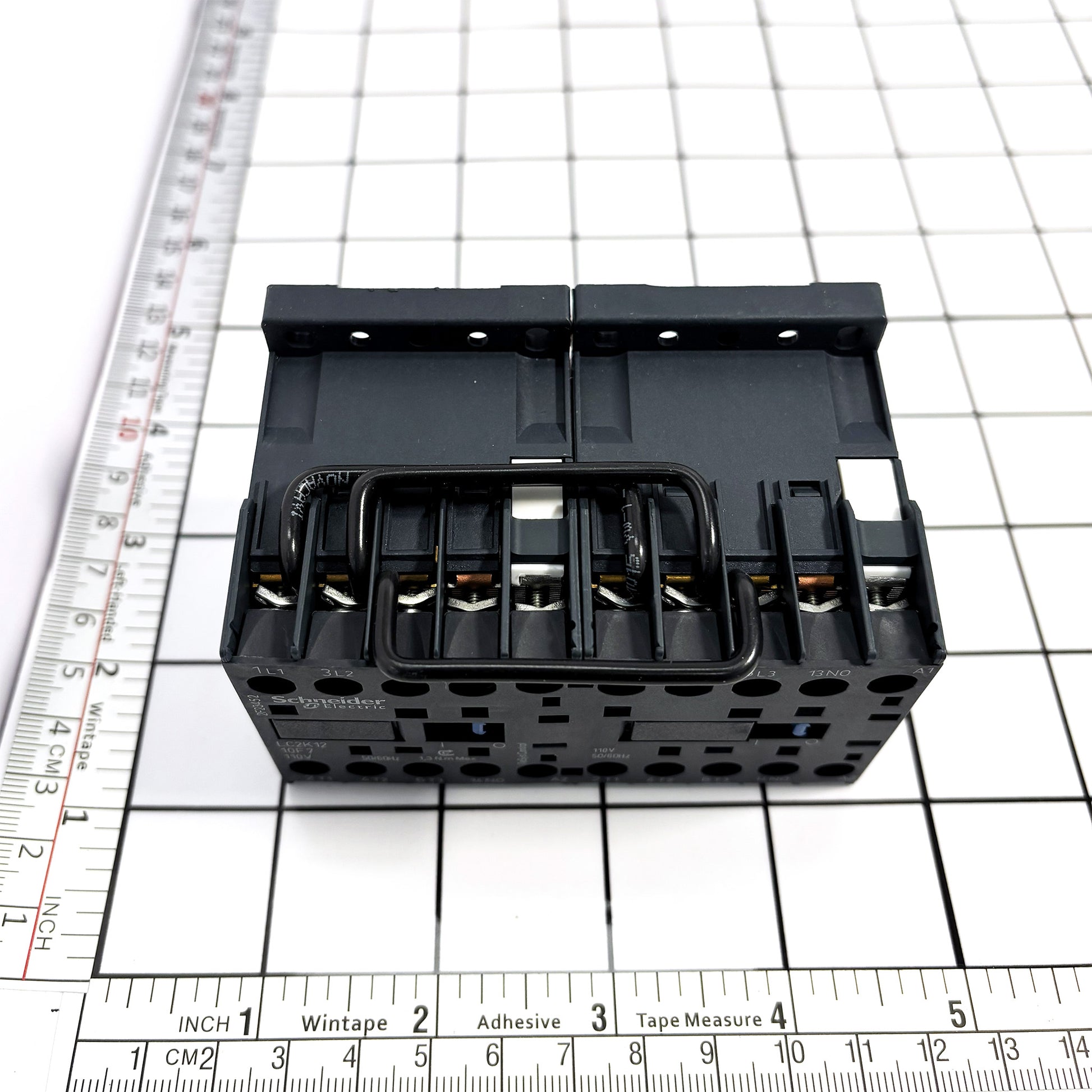

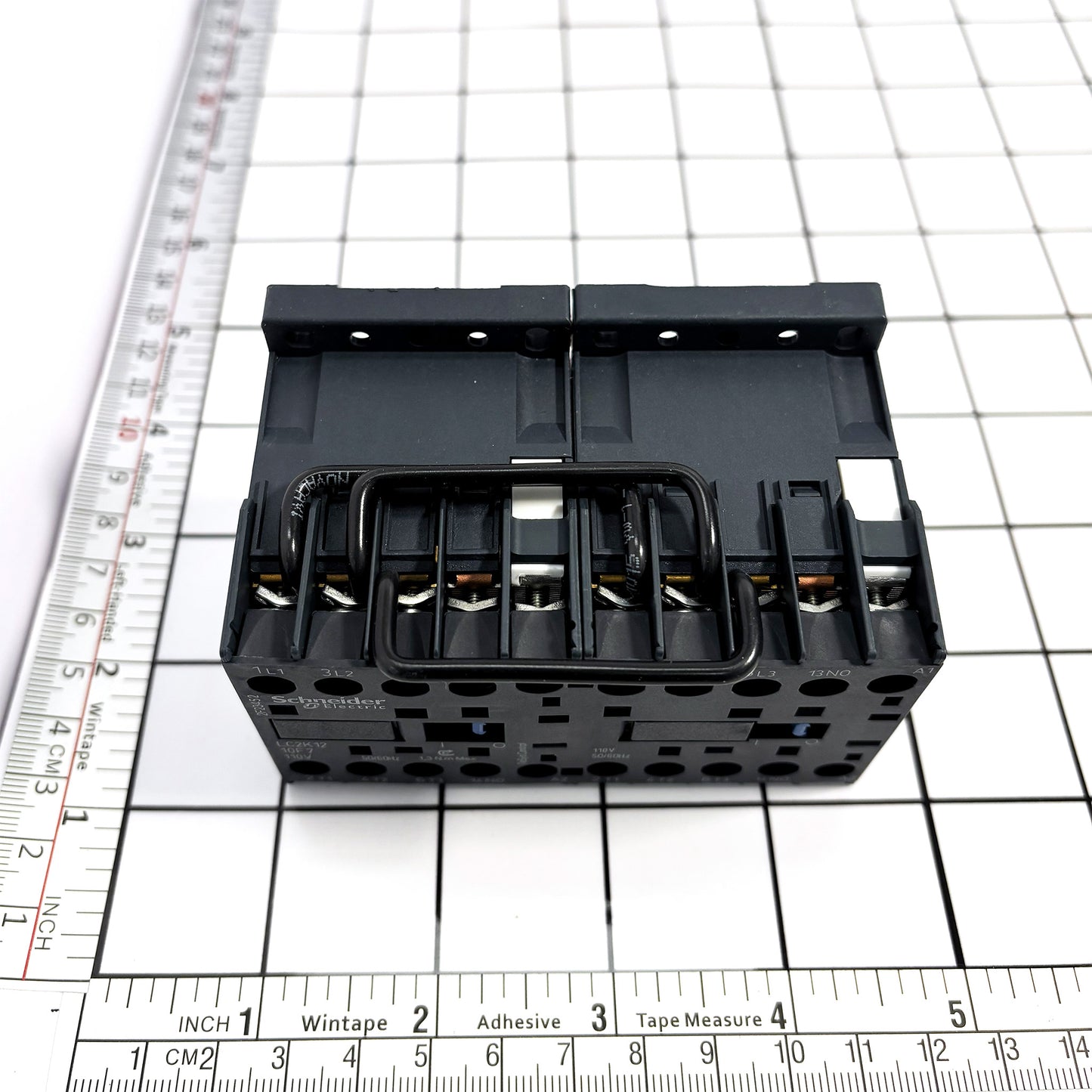

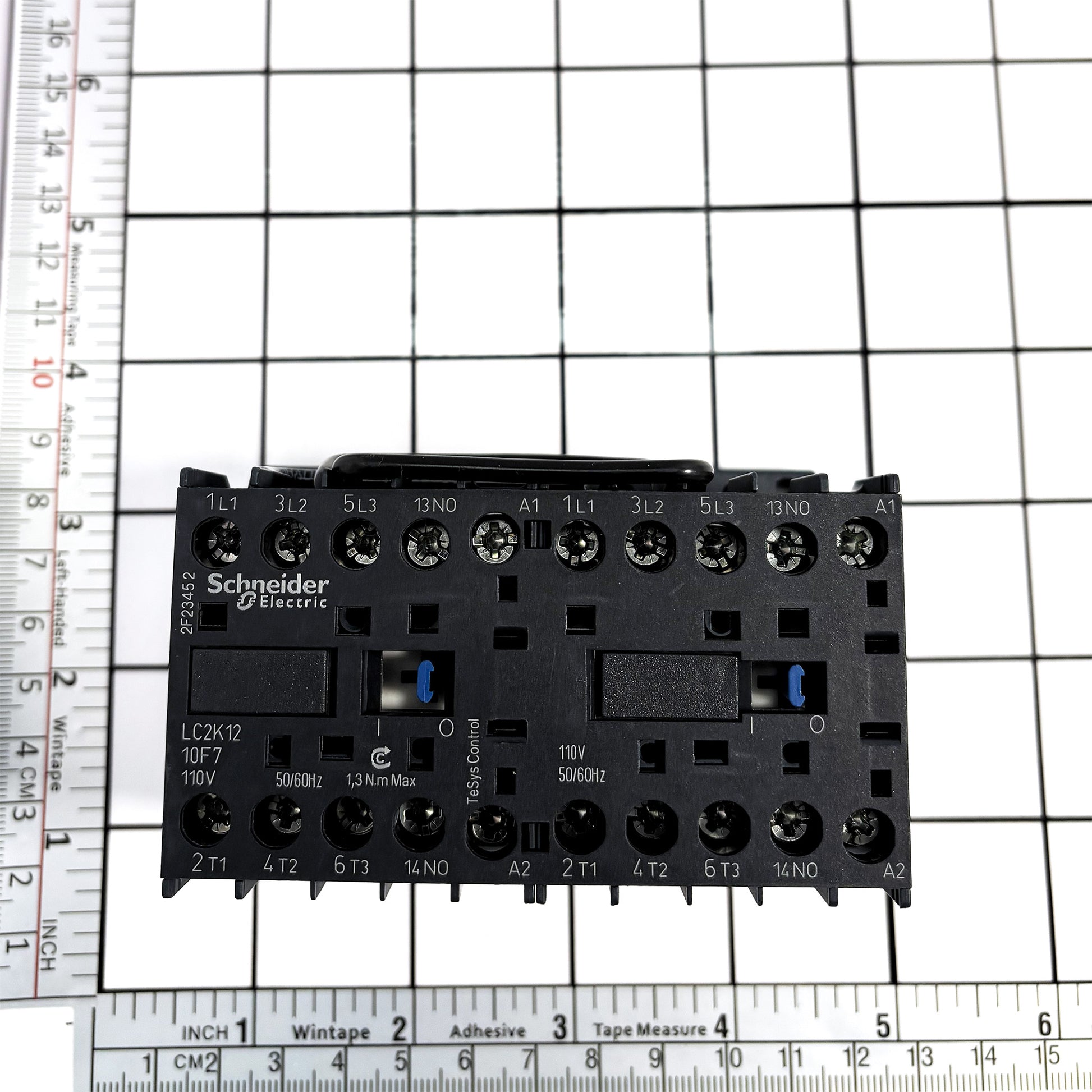

• 1/2 Hp and 1/4 Hp: 115 V Coil
1 1

1/2 Hp and 1/4 Hp: 115 V Coil - 24799

1/2 Hp and 1/4 Hp: 115 V Coil - 24799

Click to view specifications

Product Code: 24799

Product Price:
$622.04 USD
$622.04 USD
Sale Sold out

Brand: Coffing® | CM®

Availability In Stock Usually ships within 1-2 business days.
Check if this part fits your equipment Select your equipment to verify compatibility.
Part identification help What this part does, wear signs, and inspection guidance

What this part does

Forms part of the hoist or trolley electrical/control system.

Common signs of wear

Look for heat damage, discoloration, loose terminals, damaged insulation, burned contacts, moisture intrusion, or mechanical damage.

Possible symptoms

Possible signs include intermittent operation, failure to start or stop, nuisance tripping, incorrect direction, or abnormal control behavior.

Inspection / ordering tip

De-energize and lock out equipment before inspection. Verify voltage, phase, wiring, model, and control configuration before replacing electrical components. Manufacturer parts table lists 1 per trolley for this part.

Guidance basis: Exact SKU found in 14634-ec-turnover-manual.pdf p.24 | 14634-ec-turnover-manual.pdf p.25 | 24794-universal-trolley-motorized-manual.pdf p.21 | 5284-coffing-jlc-series-electric-hoist-2011-sept-jlc680-1 (6).pdf p.22 | 5284-coffing-jlc-series-electric-hoist-2011-sept-jlc680-1 (6).pdf p.23 | 55355-cm_635_series_motor_driven_trolley_2007_sept_635-j (1).pdf p.19 | 55592-coffing_ec_series_electric_hoist_2002_ec680-6.pdf p.27 | 55592-coffing_ec_series_electric_hoist_2002_ec680-6.pdf p.28 | 55593-coffing_ec_series_electric_hoist_2006_ec680-6.pdf p.24 | 55593-coffing_ec_series_electric_hoist_2006_ec680-6.pdf p.25 | CM_LodestarNH_Manual.pdf p.78 | CM_LodestarNH_Manual.pdf p.79 | CM_LodestarNH_Manual.pdf p.80 | CM_LodestarNH_Manual.pdf p.81 | CM_LodestarNH_Manual.pdf p.85 | CM_LodestarNH_Manual.pdf p.86 | CM_LodestarNH_Manual.pdf p.87 | CM_LodestarNH_Manual.pdf p.88 | CM_LodestarNH_Manual.pdf p.89 | CM_LodestarNH_Manual.pdf p.90 | CM_LodestarNH_Manual.pdf p.91. Guidance is based on the manufacturer parts breakdown and applicable inspection/maintenance information; verify model/capacity/configuration before ordering or service. Manufacturer parts table quantity: 1 per trolley (24794-universal-trolley-motorized-manual.pdf p.21, callout 4).
