Shading Coil Element (must Be Attached To Frame With H-7812 Adhesive - 860J1

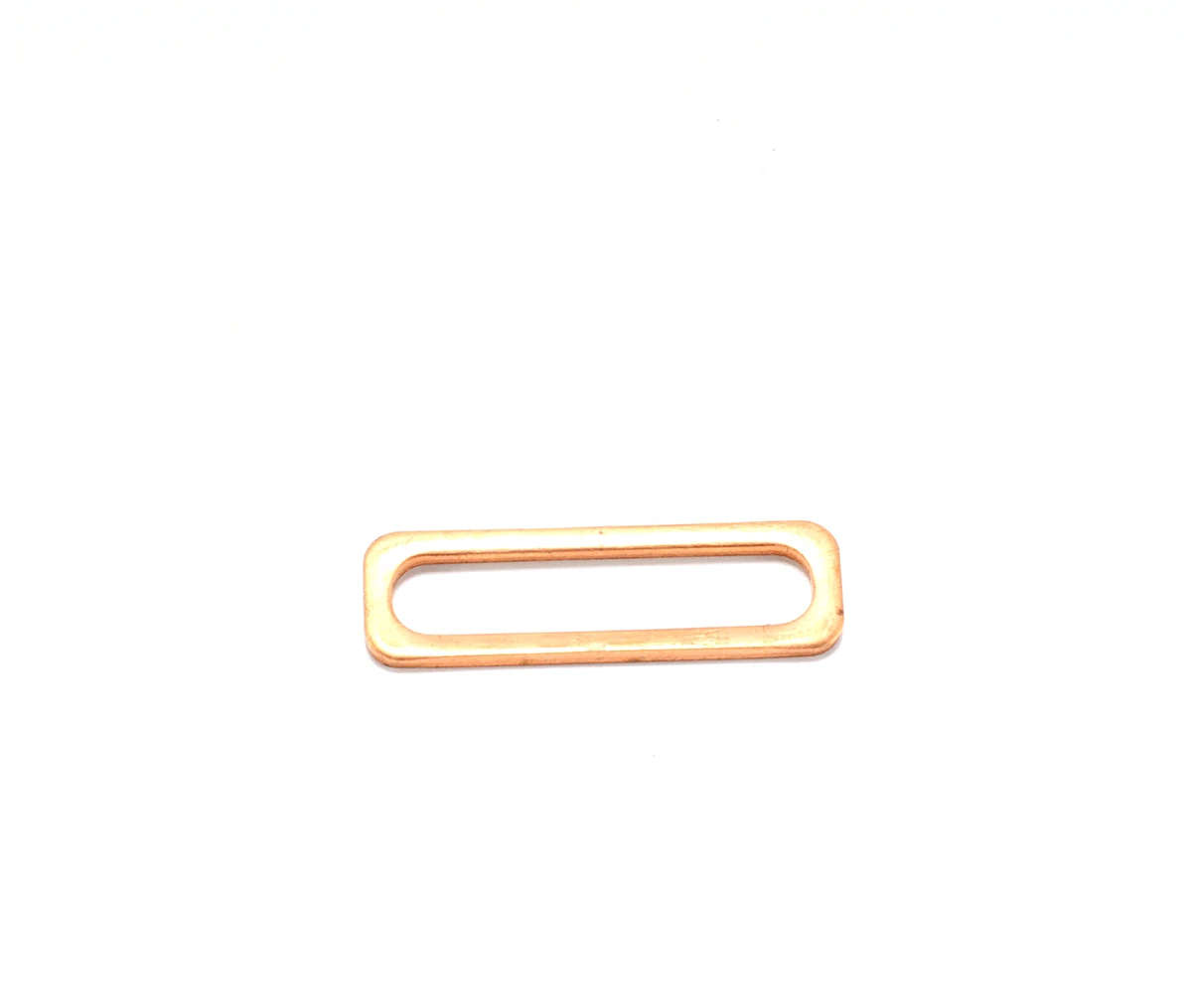

Name: Shading Coil Element (must Be Attached To Frame With H-7812 Adhesive - 860J1
Brand: Coffing®
SKU: 860J1
Price: 6.02 USD
Availability: InStock

Click to view specifications

Product variants

Product Code: SKU:860J1

Product Price:

$6.02 USD

Sale Sold out

Brand: Coffing®

Availability

Factory Order

Typically ships based on manufacturer lead time.

Check if this part fits your equipment Select your equipment to verify compatibility.

Brand

Series

Model

Part identification help What this part does, wear signs, and inspection guidance

What this part does

Provides the magnetic force or related magnetic-brake function needed to release and control the JLC disc brake during hoist operation.

Common signs of wear

Check for overheated or discolored windings, open or shorted coil circuits, damaged leads, loose connections, armature binding, or a broken/damaged shading coil where applicable.

Possible symptoms

Possible signs include brake not releasing, hoist hesitation or failure to start, brake chatter or buzz, delayed stopping, and motor overheating if the brake drags. Other electrical or mechanical faults can produce similar symptoms.

Inspection / ordering tip

Disconnect and lock out power. Check coil continuity, wiring and connections, brake air gap/adjustment, armature movement and signs of overheating. Follow the JLC brake-adjustment procedure before replacing components.

Guidance basis: Exact SKU found in 194058-Coffing-EC3-680-4_EC-3_Series_Operations-Manual_03_03_26.pdf p.35 | 5284-coffing-jlc-series-electric-hoist-2011-sept-jlc680-1 (6).pdf p.21 | 55592-coffing_ec_series_electric_hoist_2002_ec680-6.pdf p.26. Guidance is based on the manufacturer parts breakdown and applicable inspection/maintenance information; verify model/capacity/configuration before ordering or service. Manufacturer parts table quantity: 2 per hoist (194058-Coffing-EC3-680-4_EC-3_Series_Operations-Manual_03_03_26.pdf p.35, callout 15). JLC troubleshooting cross-reference: Coffing JLC680-1 pp.12-13. Supplemental non-OEM context reviewed: Hoists Direct hoist troubleshooting; Lifting Equipment Store electric-hoist troubleshooting guide; Hoists.com electric chain hoist troubleshooting guide. OEM JLC manual takes precedence.

Look for callout 14
