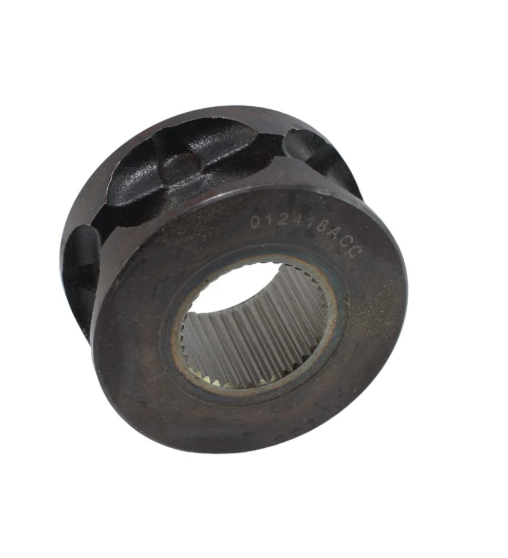

Load Sheave for 9/32" Chain -JF16 3

Name: Load Sheave for 9/32" Chain -JF16 3
Brand: Coffing®
SKU: JF16 3
Price: 339.84 USD
Availability: InStock

Load Sheave for 9/32" Chain -JF16 3

Click to view specifications

Product variants

Product Code: SKU:JF16 3

Product Price:

$339.84 USD

Sale Sold out

Brand: Coffing®

Availability

Factory Order

Typically ships based on manufacturer lead time.

Check if this part fits your equipment Select your equipment to verify compatibility.

Brand

Series

Model

Part identification help What this part does, wear signs, and inspection guidance

Common signs of wear

Worn or hooked chain pockets, scoring, cracking, uneven wear or damage that prevents smooth chain seating.

Possible symptoms

Possible signs include rough or jerky chain travel, chain jumping or binding, abnormal chain noise, uneven chain seating, or accelerated load-chain wear.

Inspection / ordering tip

Inspect each chain pocket for wear, sharp edges, cracking and uneven contact; verify the 9/32 in load chain seats and travels smoothly through the sheave.

Guidance basis: Load sheave for 9/32 in chain listed as transmission callout 25. Verify chain size and inspect the complete load-sheave/chain path before replacement. Reference: Coffing JLC680-1, Fig. 22 and transmission parts list, pp. 28-29; https://www.coffinghoist.com/wp-content/uploads/sites/5/Coffing-JLC-Manual.pdf

Look for callout 25
