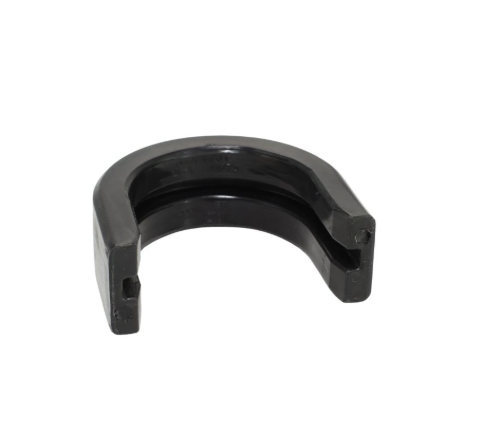

Chain Guide-JM273

Name: Chain Guide-JM273
Brand: Coffing®
SKU: JM273
Price: 104.0 USD
Availability: InStock

Chain Guide-JM273

Click to view specifications

Product variants

Product Code: SKU:JM273

Product Price:

$104.00 USD

Sale Sold out

Brand: Coffing®

Availability

Factory Order

Typically ships based on manufacturer lead time.

Check if this part fits your equipment Select your equipment to verify compatibility.

Brand

Series

Model

Part identification help What this part does, wear signs, and inspection guidance

Common signs of wear

Grooving, chain contact wear, deformation, cracking, looseness or damage at the chain path.

Possible symptoms

Possible signs include load chain rubbing, binding, rough chain travel, abnormal chain noise, or the chain not tracking cleanly through the transmission.

Inspection / ordering tip

Inspect the guide surfaces for grooves, sharp edges, cracking or deformation and verify the load chain tracks through the transmission without rubbing or binding.

Guidance basis: Chain guide listed as transmission callout 6 in the Coffing JLC transmission parts list. Inspect together with the chain, stripper and load-sheave path. Reference: Coffing JLC680-1, Fig. 22 and transmission parts list, pp. 28-29; https://www.coffinghoist.com/wp-content/uploads/sites/5/Coffing-JLC-Manual.pdf

Look for callout 6
