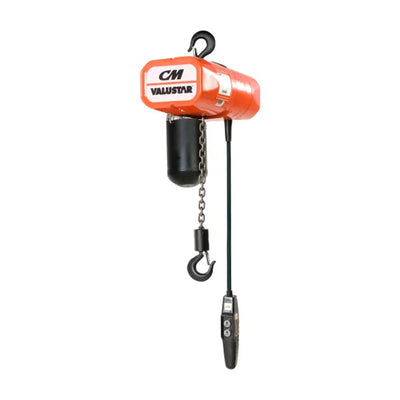

1 Ton CM Valustar WL Electric Chain Hoist with Rigid Hook Suspension. 10ft of lift @ 16fpm, 230/460v

1 Ton CM Valustar WL Electric Chain Hoist with Rigid Hook Suspension. 10ft of lift @ 16fpm, 230/460v

Click to view specifications

Product variants

Product Code: SKU:2408

Product Price:

$3,425.10 USD

$3,425.10 USD

Sale Sold out

Brand: CM®

Availability

Factory Order

Typically ships based on manufacturer lead time.

Lift (ft)

<div class="lv-option-dropdown-options-tpl" style="display:none;">
    <div
      class="lv-option-dropdown-options"
      style="--border-width:1px;--border-color:#babfc3;--bg-color:#ffffff;--text-color:#202223;--border-radius:2px;--badge-bg-color:#E83300;--badge-text-color:#fff;--badge-font-size:8px;--badge-font-weight:600;--badge-padding-y:4px;--badge-padding-x:6px;--badge-border-radius:2px;--badge-opacity:100;--dropdown-padding-y:14px;--dropdown-padding-x:14px;--bg-color-normal:#ffffff;--text-color-normal:#202223;--bg-color-active:#eee;--text-color-active:#202020;--price-position:row;--price-space:6px;--text-align:center;--price-font-size:12px;--price-color:#202020;--price-font-weight:200;--swatch-size:22px;--swatch-border-radius:24px;--space-after-swatch:9px;"
    ><ul class="lv-option-dropdown-option-set">

<li
              class="lv-option-dropdown-option"

              selected
              data-enabled="1"
              data-pid="10201191317786"
              data-handle="2408"
              data-status="1"
              data-value="10 ft"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">10 ft</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="10201193316634"
              data-handle="2408b"
              data-status="1"
              data-value="15 ft"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">15 ft</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="10201195970842"
              data-handle="2408c"
              data-status="1"
              data-value="20 ft"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">20 ft</div>


                </div>

              </div>
            </li>

</ul>
    </div>
  </div>

Power Supply

<div class="lv-option-dropdown-options-tpl" style="display:none;">
    <div
      class="lv-option-dropdown-options"
      style="--border-width:1px;--border-color:#babfc3;--bg-color:#ffffff;--text-color:#202223;--border-radius:2px;--badge-bg-color:#E83300;--badge-text-color:#fff;--badge-font-size:8px;--badge-font-weight:600;--badge-padding-y:4px;--badge-padding-x:6px;--badge-border-radius:2px;--badge-opacity:100;--dropdown-padding-y:14px;--dropdown-padding-x:14px;--bg-color-normal:#ffffff;--text-color-normal:#202223;--bg-color-active:#eee;--text-color-active:#202020;--price-position:row;--price-space:6px;--text-align:center;--price-font-size:12px;--price-color:#202020;--price-font-weight:200;--swatch-size:22px;--swatch-border-radius:24px;--space-after-swatch:9px;"
    ><ul class="lv-option-dropdown-option-set">

<li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="10201191055642"
              data-handle="2407"
              data-status="1"
              data-value="115v-1ph-60hz"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="1"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">115v-1ph-60hz</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"

              selected
              data-enabled="1"
              data-pid="10201191317786"
              data-handle="2408"
              data-status="1"
              data-value="230/460v-3ph-60hz"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="1"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">230/460v-3ph-60hz</div>


                </div>

              </div>
            </li>

</ul>
    </div>
  </div>

Don't see what you need? Give us a call or fill out a form!

Create an ACECO price quote for this product.

PRICE QUOTE

Date: October 18, 2026
Reference: Online Store

Prepared For

Company
Contact
Email
Project / PO

Address
Address 2
City / State / ZIP
Phone

1 Ton CM Valustar WL Electric Chain Hoist with Rigid Hook Suspension. 10ft of lift @ 16fpm, 230/460v

1 Ton CM Valustar WL Electric Chain Hoist with Rigid Hook Suspension. 10ft of lift @ 16fpm, 230/460v

SKU / Part Number	2408
Brand	CM®
Availability	Factory Order

Quote Total

Quantity: 1 × Unit Price: $3,425.10

$3,425.10

Specifications

Capacity (Ton)	1 Ton
Net Weight (lbs)	106 lbs
Shipping Weight (lbs)	136 lbs
Power Supply	230/460v-3ph-60hz
Control Station	2 button station with 6ft of control cord
Power Cord (ft)	5 ft
Lift (ft)	10 ft
Lifting Speed (fpm)	16 fpm
Chain Container	Optional
Suspension Type	Rigid Hook
Headroom (in)	15-9/16 in
Reeving	1

Product Description

Product Code	2408
Model	VALUSTAR WL
Product Category	Electric Chain Hoists
Brand	CM
Package Type	Each
